Patient Benefits
Simply designed
- QuickFit elastic headgear that easily slips on like a pair of goggles and is designed to fit right out of the package.
- Tiny headgear clip can be used to make minor adjustments if needed, so keeping it comfortable is simple too.
Fits you and your lifestyle
- Small, quiet and easy to use, it’s ResMed’s lightest mask ever*
- Features a curved cushion made of soft silicone that cradles under your nose for a comfortable fit that’s also discreet.
- QuietAir™ vent technology is designed to minimize noise by breaking up exhaled air so it’s spread out lightly.
The easier way to start CPAP therapy
- Minimalist design and slip-on elastic headgear that can help you get off to the right start with your new routine.
- AirFit N30 pairs with the ResMed myAir™ app†, which makes it easy to track your progress with a daily sleep score and adjust to therapy with personalized videos and tips.
*As of 10/21/2019. The total weight of AirFit N30, which includes the headgear and excludes the packaging is 45g.
† The myAir for ResMed Air10™ app is available in English only in the US, Canada, New Zealand, Australia and in Korean in South Korea.
† The myAir for ResMed Air10™ app is available in English only in the US, Canada, New Zealand, Australia and in Korean in South Korea.
Fitting Guide
- While holding the nasal cradle cushion away from the nose, make sure the cushion size (SML, MED or SML-WIDE), and left (L) and right (R) indicators are facing towards you. Place the nasal cradle cushion under the nose.
- Pull the QuickFit™ headgear over the head by holding the bottom band and guiding it around the back of the head. The top band should sit comfortably on the crown of the head.
- Briefly pull the nasal cradle cushion away from the nose, and then place it back under the nose to ensure the cushion fits well.
- To achieve a comfortable fit, spread the split bands on the QuickFit headgear apart to loosen the mask or draw them closer together to tighten the mask.
- To fix a mask leak, adjust the QuickFit headgear by pulling it through the single side-clip. Adjust it just enough for a comfortable seal. Do not overtighten. You may need to adjust the headgear over time.
- The mask is now fitted and ready to use.

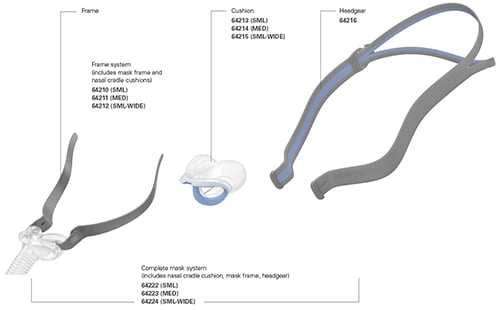

| Complete mask system | |
|---|---|
| (includes mask frame, nasal cradle cushion and headgear) | |
| AirFit N30 Mask System – SML | 64222 |
| AirFit N30 Mask System – MED | 64223 |
| AirFit N30 Mask System – SML-WIDE | 64224 |
| Nasal cradle cushion | |
| AirFit N30 Cushion – SML | 64213 |
| AirFit N30 Cushion – MED | 64214 |
| AirFit N30 Cushion – SML-WIDE | 64215 |
| Frame systems | |
| (includes mask frame and nasal cradle cushion) | |
| AirFit N30 Frame System – SML | 64210 |
| AirFit N30 Frame System – MED | 64211 |
| AirFit N30 Frame System – SML-WIDE | 64212 |
| Headgear | |
| AirFit N30 Headgear | 64216 |

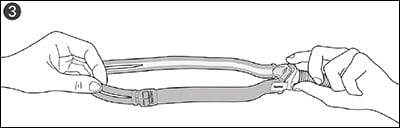

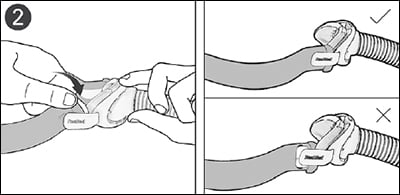

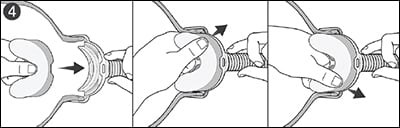

Assembly

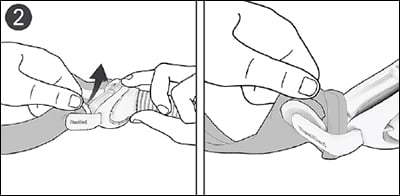

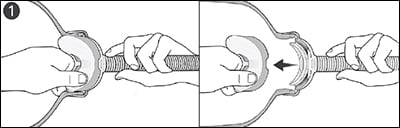

Disassembly
