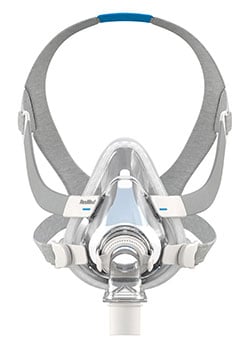

Patient Benefits
UltraSoft™ memory foam cushion technology
- Memory foam cushion conforms to the unique contours of each face.
- Cushion designed to deliver a light, breathable fit and seal.
Designed for simplicity
- A simple wipe down with non-alcoholic wipes keeps the mask clean.
- Magnetic clips guide the headgear to the frame quickly and easily.*
- Quick-release elbow makes it simple to disconnect from the tubing without removing the mask.
Comfort and softness
- Plush headgear is specifically designed for extra softness and stability.
- Soft and flexible frame sits underneath the eyes and adapts to different facial types, while its integrated padding provides added softness.
* Magnets may interfere with certain implants or medical devices. Please refer to the User Guides for complete information, including magnet contraindications and warnings.
Fitting Guide
- Start by ensuring the magnets on the lower straps are unclipped.
- If they are clipped, detach them by twisting and pulling them away from the frame.
- Pull the headgear over the patient's head, making sure the logo is facing outward.
- Position the lower straps so they both sit below the patient's ears.
- Bring each of the magnets up to meet their corresponding clips on the frame.
- Adjust the fastening tabs on the upper straps until the mask feels even and stable.
- Reattach the fastening tabs.
- Repeat step 4 with the lower straps.
- Reattach the fastening tabs.
- Connect the device’s air tube to the elbow, then click the elbow into the front of the mask.
- Start the device.

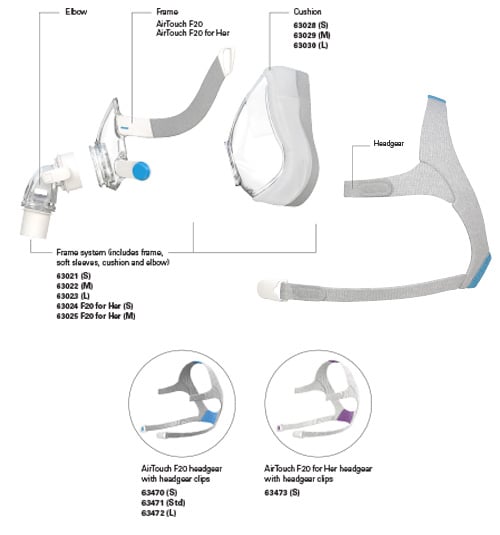

| Complete mask system | |
|---|---|
| Small | 63000 |
| Includes frame, small cushion, elbow, soft sleeves and standard blue headgear with headgear clips | |
| Medium | 63001 |
| Includes frame, medium cushion, elbow, soft sleeves and standard blue headgear with headgear clips | |
| Large | 63002 |
| Includes frame, large cushion, elbow, soft sleeves and standard blue headgear with headgear clips | |
| Headgear | |
| Small | 63470 |
| Standard | 63471 |
| Large | 63472 |
| Frame system | |
| Includes frame, soft sleeves, cushion and elbow | |
| Small | 63021 |
| Medium | 63022 |
| Large | 63023 |
| Cushion | |
| Small | 63028 |
| Medium | 63029 |
| Large | 63030 |
Disassembly
Assembly
