Patient Benefits
Light touch, quiet comfort
- The compact and streamlined design minimizes facial contact while offering stability with a secure seal.
- The soft, flexible and stable headgear flexes and adjusts to your facial width, minimizing facial marks.
- Dual-wall nasal pillows sit on a flexible pillow base and seal softly to reduce airflow into the nasal passages for maximum comfort.
- The unique vent design delivers super-quiet performance.
Personalized fit and comfort
- The rotating barrel allows you to personalize the most comfortable fit the first time and every time for your nasal pillows without overtightening your headgear.
- The 360º swivel gives the user more sleeping freedom by enabling multiple sleeping positions, including side or back.
- Optional tube retainer clicks onto the top of the headgear for multiple tubing positions, including side and back sleeping.
Fitting Guide
- Holding the pillows at your nose, pull the headgear over your head.
- The headgear should sit midway between the ears and eyes.
- Adjust the top straps by pulling them evenly until comfortable.
- Do not overtighten.
- Repeat step 2 with the backstraps.
- Do not overtighten.
- Using the rotating barrel, position the nasal pillows at the most suitable angle.
- Connect the Swift LT short tube to the device air tubing.
- Turn on the flow generator.
- The Swift LT is now fitted and ready for use.
OPTIONAL
For alternate tubing positions, use the tube retainer:
- To attach, push it into the top headgear buckle.
- Clip in either the short tube or device air tubing, depending on flexibility needs.
- The tubing can be positioned to either side of your face or centered.
- If the pillows pull on your nose, adjust the tubing at the tube retainer.
- The tubing can be positioned to either side of your face or centered.
- If the pillows pull on your nose, adjust the tubing at the tube retainer.

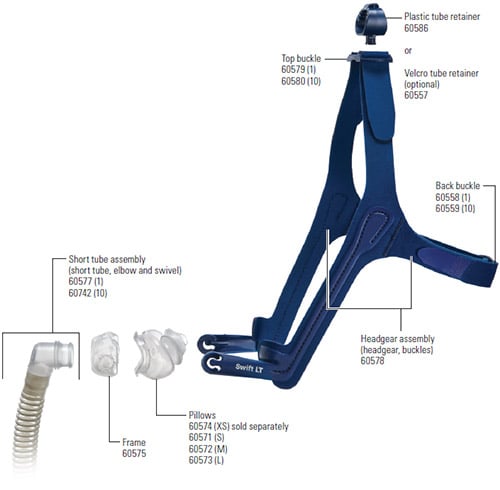

| Complete mask system | |
|---|---|
| Includes Small, Medium and Large pillow sizes.* | 60560 |
| Frame system | |
| Includes headgear buckles, but no headgear | |
| Extra Small | 60585 |
| Small | 60582 |
| Medium | 60583 |
| Large | 60584 |
| Frame assembly | |
| Includes headgear buckles, but no headgear or pillows | 60581 |
| *Extra Small sold separately | |
Disassembly
Assembly
